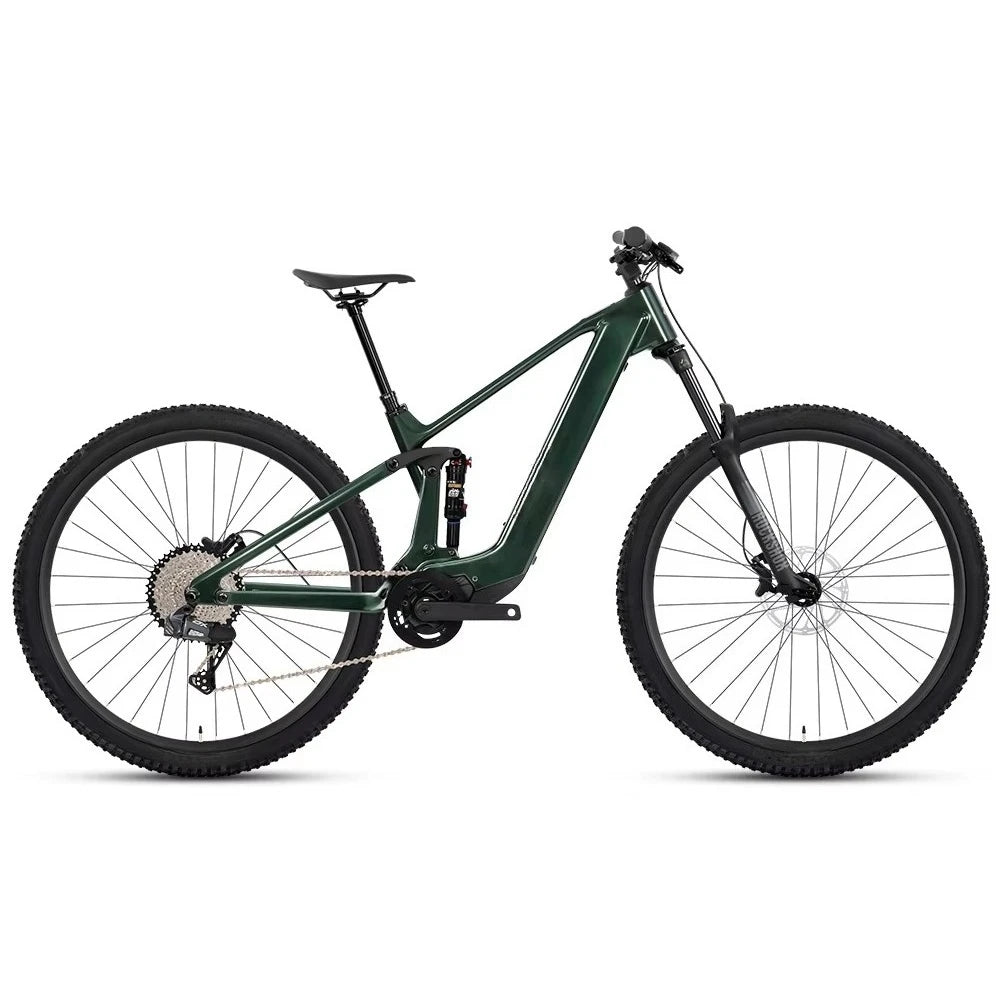

Latest model, for EM19 E mountain bike, mid-drive motor, 12-speed, carbon fiber electric mountain bike, dual suspension.
Latest model, for EM19 E mountain bike, mid-drive motor, 12-speed, carbon fiber electric mountain bike, dual suspension.
SPECIFICATIONS
Accessories: toolkit
Age Group: Adults, Teens
Battery: 48v 15ah lithium battery
Battery Capacity: 13AH, 15.0ah
Battery Position: MID Drive
Battery Type: Lithium
Brake: Hydraulic Disc Brake
Braking System: Hydraulic Disc Brake (Hydraulic Brake Pad)
Brand Name: NONE
Charging Time: 5-8H
Feature: Electric, Eco-Friendly, Waterproof, Strong
Frame Material: Carbon Fibre
Gears: 12 Speed
Max Speed: 30-50Km/h
Model Number: EM19-M6100/12S+M820, HIGH
Motor Power: 0-250w
Motor Type: mid
Motor position: Central Motor
Origin: Mainland China
Packaging: 100
Place of Origin: Guangdong, China
Plug Type: Us Plug, Swiss Plug, European Plug, Australian Plug, British Plug
Power Source: Battery, Lithium Battery
Power Supply: Lithium Battery
Range per Power: > 60 km
Rear Hub: gear hub
Style: Sport, Classic
Suspension Type: Full, Dual
Tire Width: 2.4''
Torque: 70-95 Nm
Type: adult electric bike, Mountain Bike
Voltage: 48 V
Watt-Hour: 48V250W
Wheel Size: 29"/27.5''
motor: mid
|
Bike Model
|
EM19
|
|
ConfRev
|
M6100/12S+M820, HIGH
|
|
Frame Size
|
29(27.5)×16" / 18"
|
|
Bike Color
|
Black / DarkGray / DarkGreen
|
|
Net Weight
|
21.9KG
|
|
Frame
|
CYCTRAC, EM19, AM, High modulus Carbon fiber,Inner cables,Thru-axle12*148 Boost, UDH,145mm Travel, DNM air rear shox200*55
|
|
Handelbar Sets
|
RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 45,Clamps 34.9mm, Seat post RS Height-adjustable&Remote 31.6*100/125mm Travel
|
|
Fork
|
ROCKSHOX-35S, Air, Manual,160,Thru-axle 15*110
|
|
Head Sets
|
Inner-Cables routing, Sealed bearings 52*52mm
|
|
Derailleur Lever
|
SHIMANO DEORE/M6100-12S
|
|

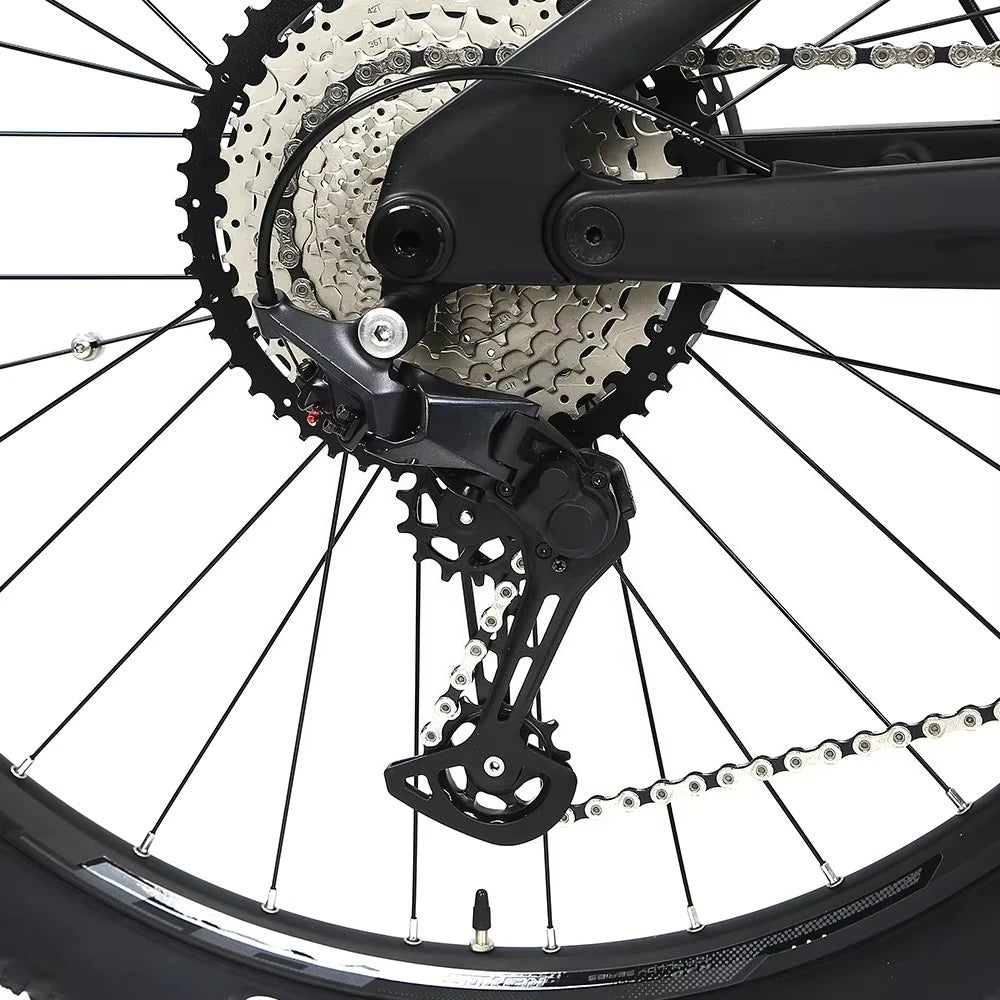

Rear Derailleur
|
SHIMANO DEORE/M6100-12S
|
|
Cranksets
|
Matching with Mid Motor, 34T
|
|
Cassettes
|
SUNSHINE-12S,11-50T
|
|
Chain
|
SUMC-12S
|
|
Brake
|
TEKTRO-M535, 4-piston hydraulic disc, 203/203mm
|
|
Hub
|
RS, Alu alloy,4-sealed Bearings,HG,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost
|
|
Rim
|
RS, Alu alloy with Double-wall&Rivets, W30×H21mm
|
|
Spoke
|
SHUNJIU, Circular 14G
|
|
Tire
|
MAXXIS, 29/27.5×2.4"
|
|
Grips
|
Circular 22.2×120mm, PU leather&locking Ring
|
|
Saddle
|
RS, Comfortable and Thickened for MTB
|
|
Pedals
|
RS, Alu alloy&Skid resistant for MTB
|
|

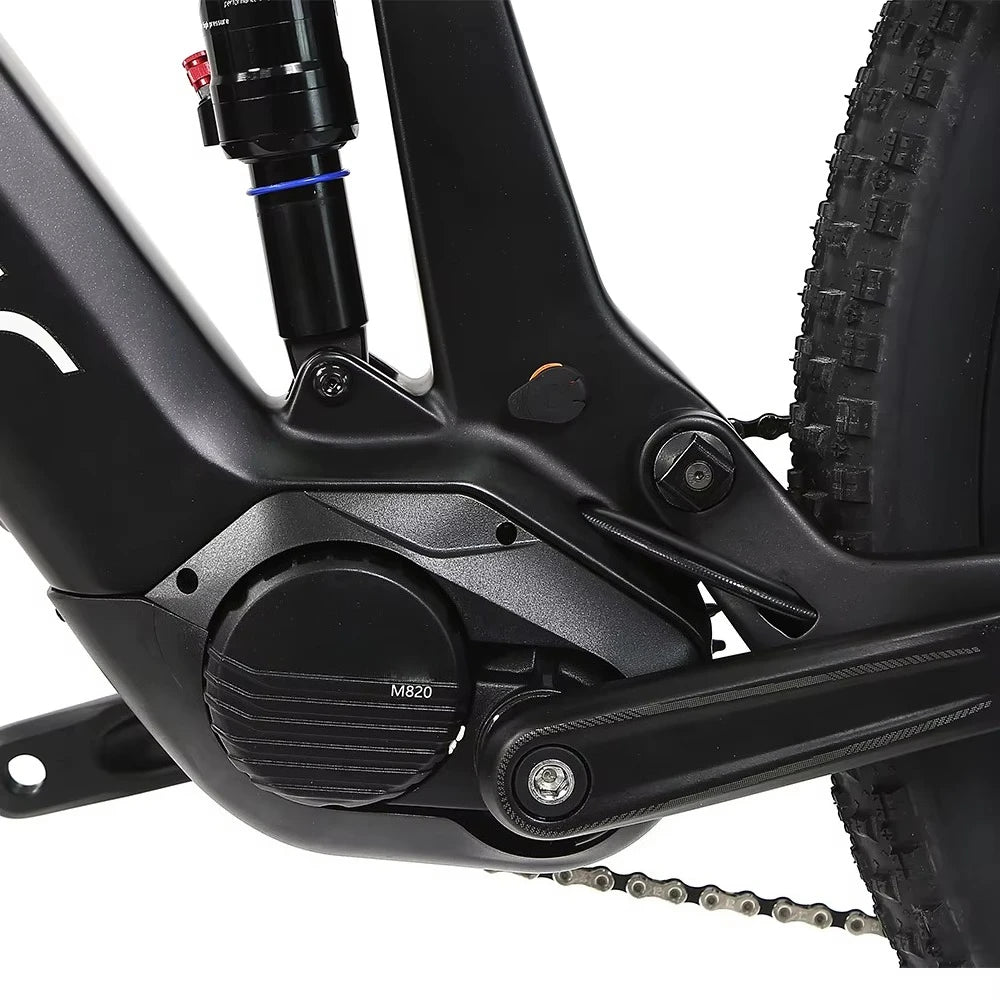

Motor System
|
Bafang Mid, M820, 36V250W(48V250W)
|
|
Max Torque
|
85 Nm
|
|
Speed Limit
|
25KMh Default (max 45KMh)
|
|
Pedal Sensor
|
Torque+Speed(cadence)
|
|
Battery
|
Samsung 21700 Li-ion, 720Wh, 36V20A(48V15A)
|
|
Endurance
|
Max 130-150KM (pedal assist)
|
|
Full charge time
|
5-7 Hours
|
|
Charger
|
3A, DC2.1
|
|

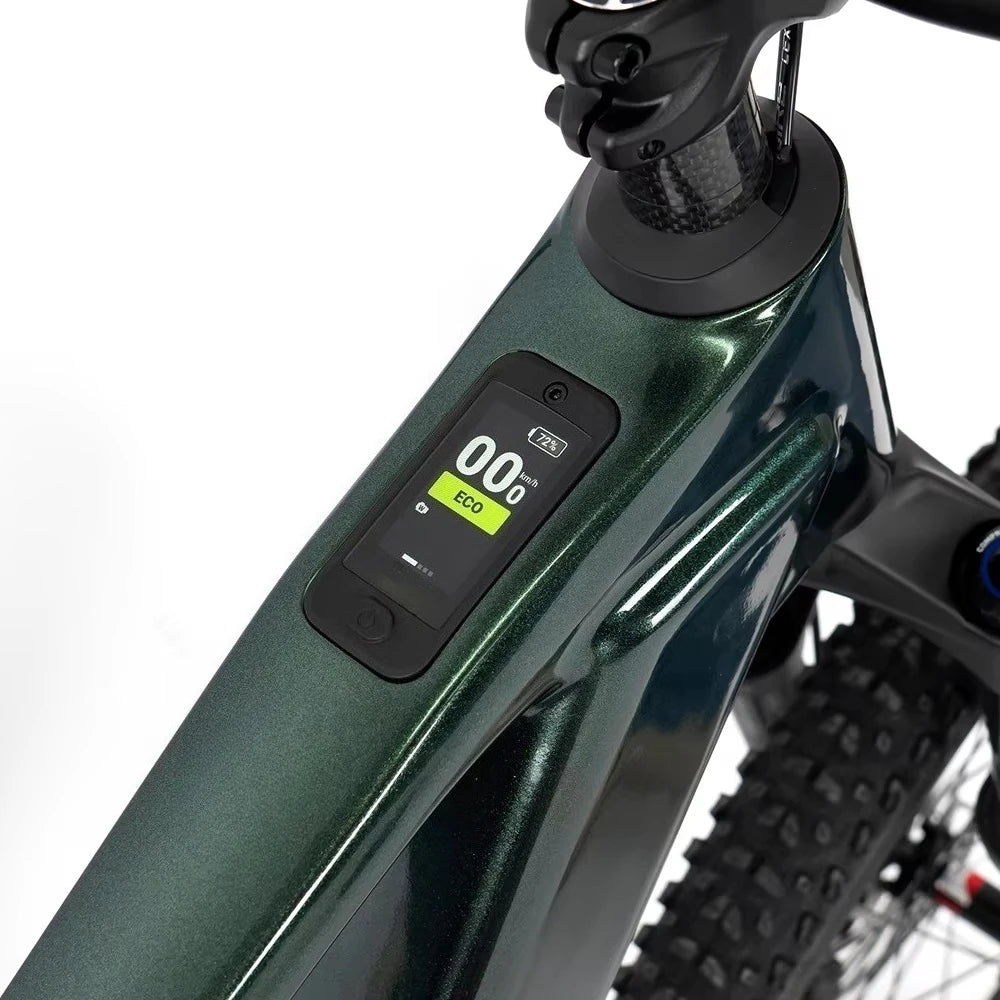

HMI
|
Bafang-C030,LCD digital(Built in Top tube), Bluetooth/BafangGo App
|
|
Waterproof
|
IP X6
|
|
Max Load
|
140 KG
|
|
Max Load
|
130 KG
|
